Magic Box

Automatic cartoning packing machine


The fully automatic cartoning machine Magic Box is a high-performance solution developed through our experience in the transport and handling of products for the graphic arts industry.
Designed to ensure maximum efficiency and rapid set up changes, Magic Box allows full make ready between one product and the next in under three minutes, thanks to the use of servo motors for all adjustments.
The fully automatic cartoning machine is equipped with an infeed timing conveyor, ensuring precise product synchronization during the production. Upon request, a turning station is also available to optimize product orientation according to packaging requirements.

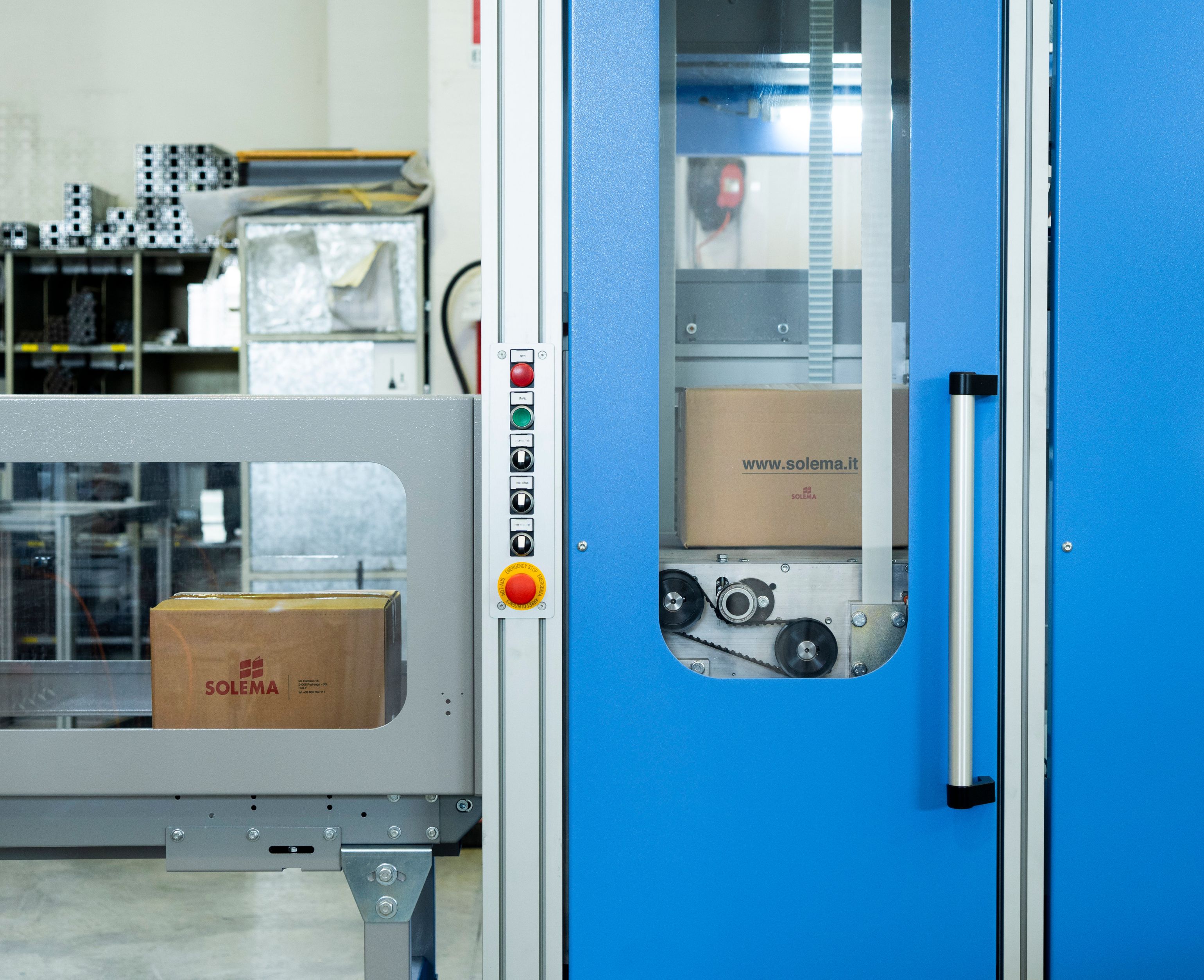

When a specific project does not require cartoning, Magic Box can be switched from a fully automatic cartoning machine into a bypass conveyor, allowing products to pass through without interrupting the production flow.
With its high level of automation, Magic Box is the ideal solution for companies seeking efficiency, reliability, and reduced setup times in their cartoning operations.

Request Information

Technical Data

Machine speedmax. 15 products/minute
Product dimensions (L x W x H)

min. 240 × 175 × 150 mm

(9 7⁄16 × 6 7⁄8 × 5 15⁄16”)

max. 490 × 340 × 290 mm

(19 5⁄16 × 13 3⁄8 × 11 7⁄16”)

Box dimensions (L x W x H)

min. 250 × 185 × 160 mm

(9 7⁄8 × 7 5⁄16 × 6 5⁄16”)

max. 500 × 350 × 300 mm

(19 11⁄16 × 13 3⁄4 × 11 13⁄16”)

Box weightmax. 25 kg (55 lb)
Size-changeautomatic through servo-motors


Video Gallery

FAQ

An automatic cartoning machine is an industrial machinery designed to completely automate the filling and closing of boxes at the end of a production line.

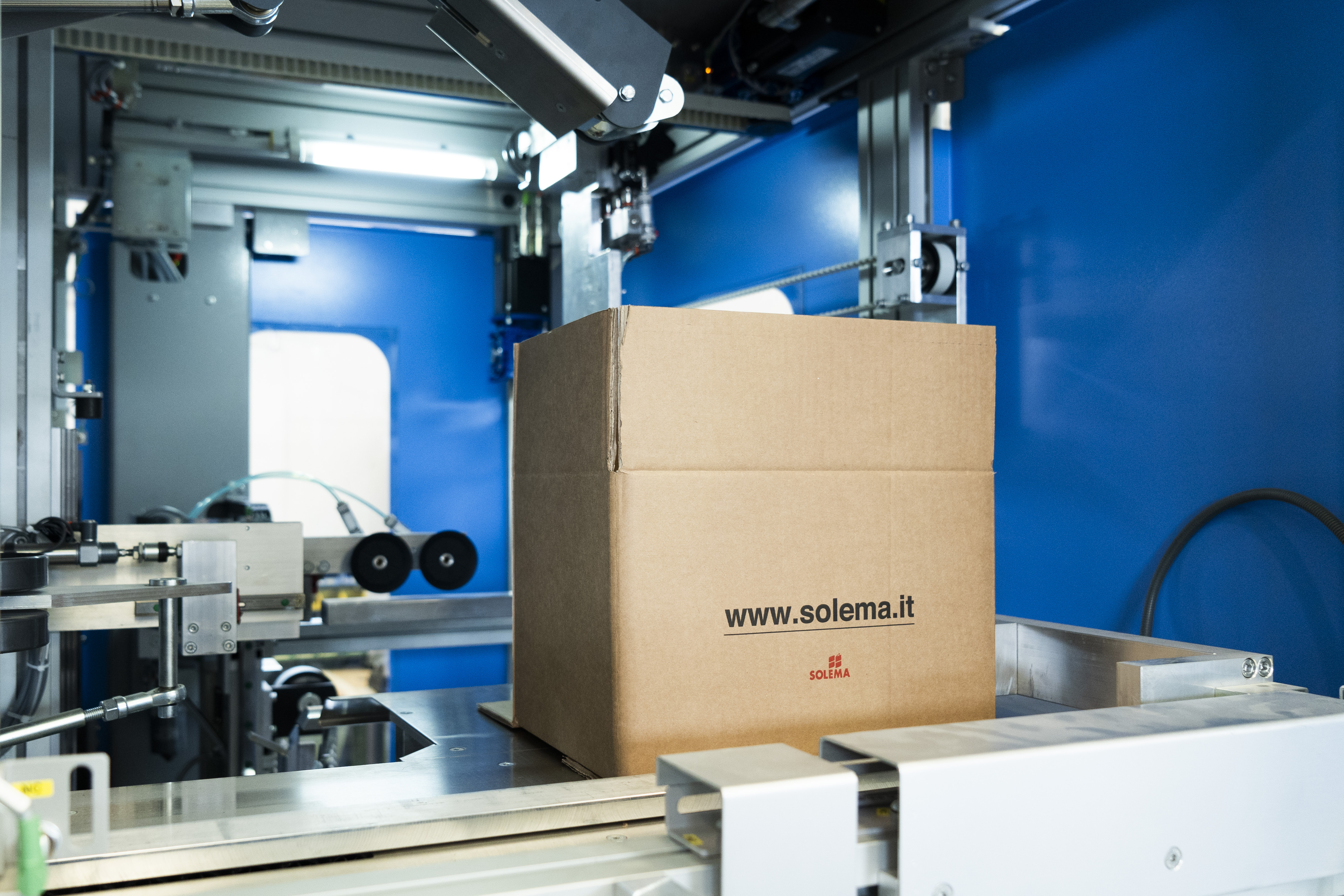

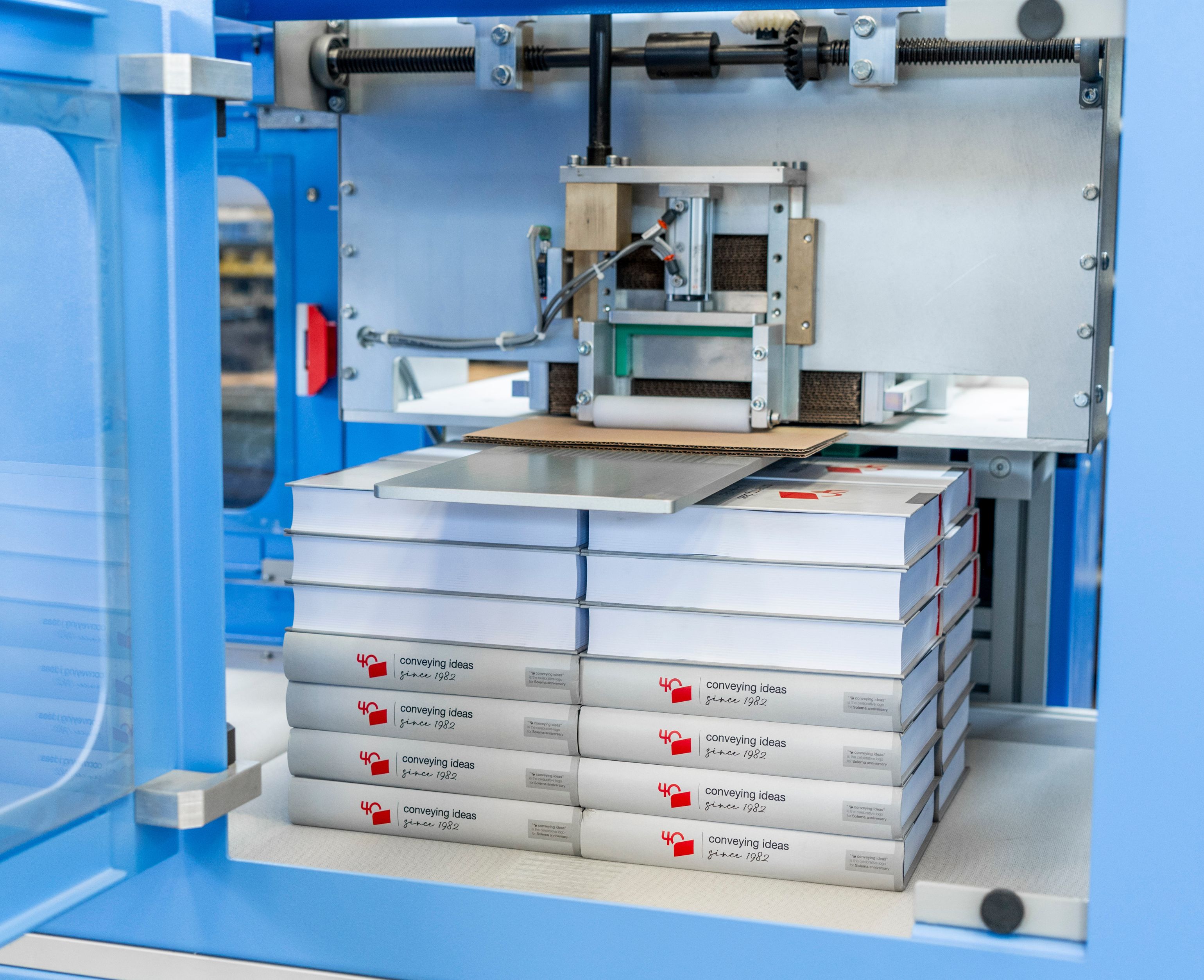

The automatic cartoning machine is equipped with a buffer roller conveyor, which schedules the entry of the stack or stacks of books into the machine. Next, a mobile conveyor belt arranges the stacks according to the selected configuration (1, 2, 4, 6). The box is then picked from the American box (RSC) magazine, opened via suction cups, and filled with the stacks of books before being sealed and taped.
•Process automation, resulting in a significant reduction of manual labor. •Operational consistency, guaranteed by the reliability of the machine. •Product safety, ensured initially by the proper handling of the product and subsequently by the correct and uniform sealing of the boxes.

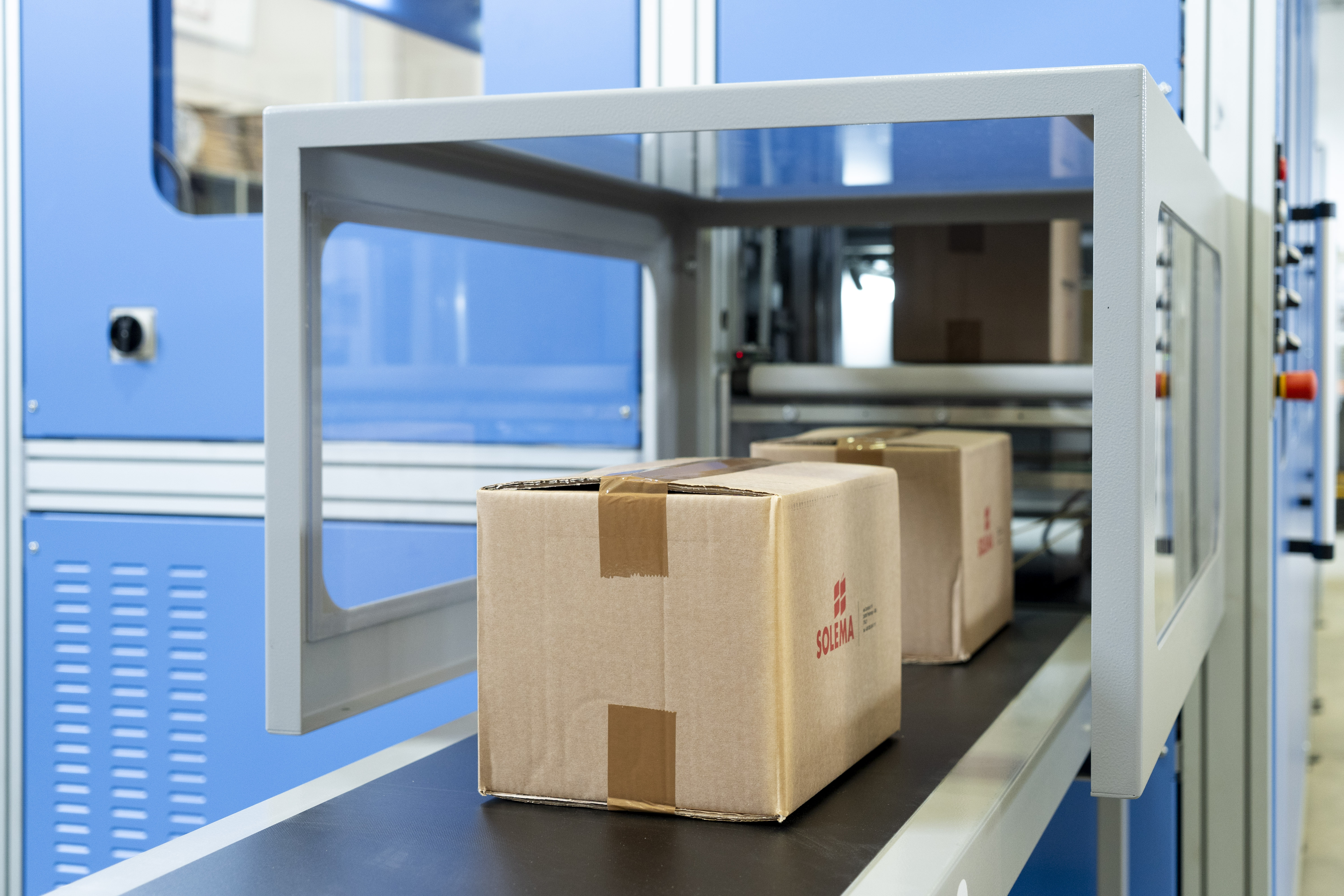

Yes, the Magic Box automatic cartoning machine is compatible with the entire range of Solema automatic palletizers. At the end of the sealing process, the conveyor belts can be connected directly to the automatic palletizer, delivering a pallet that is ready to be shrink-wrapped and shipped. This minimizes downtime and eliminates further manual labor for the operators.
In the event that book cartoning is not required, the Magic Box automatic cartoning machine is equipped with a bypass conveyor belt to allow the products to simply pass through.
