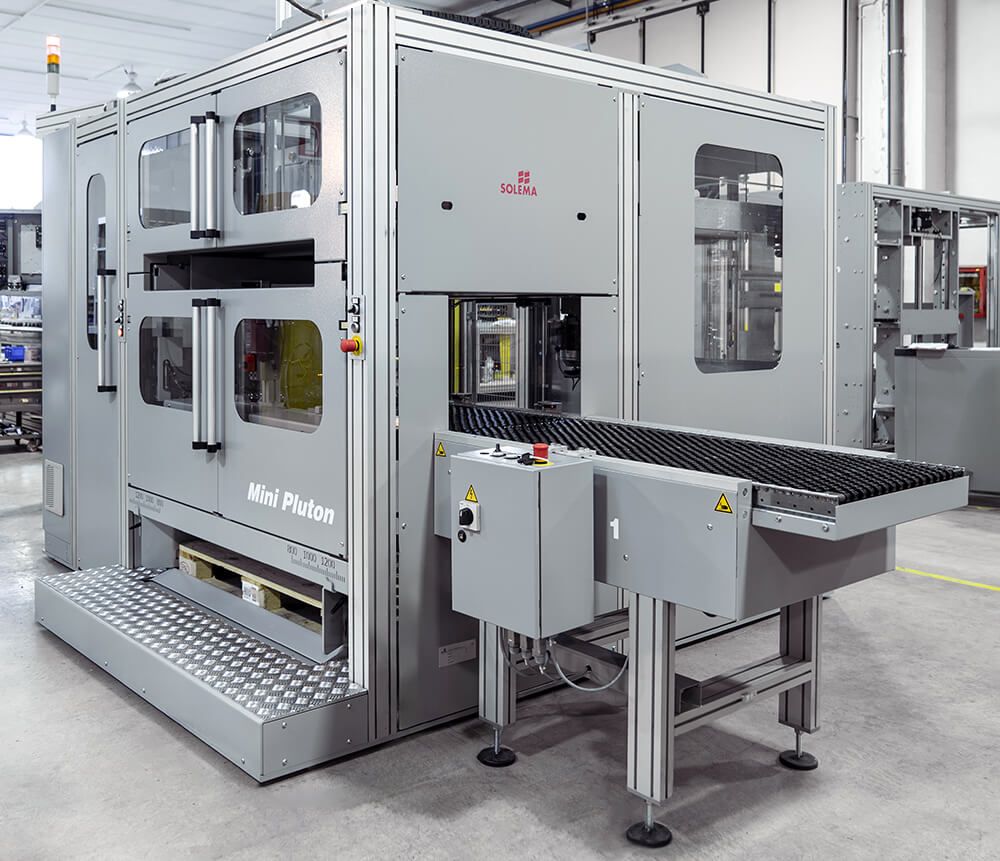

MINI PLUTON

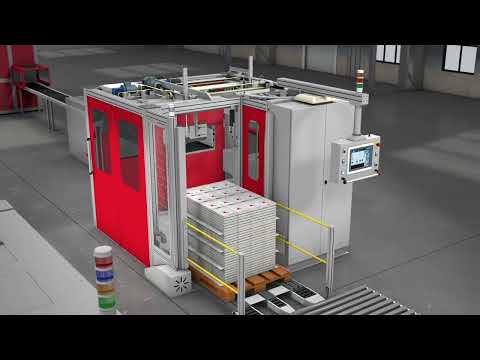

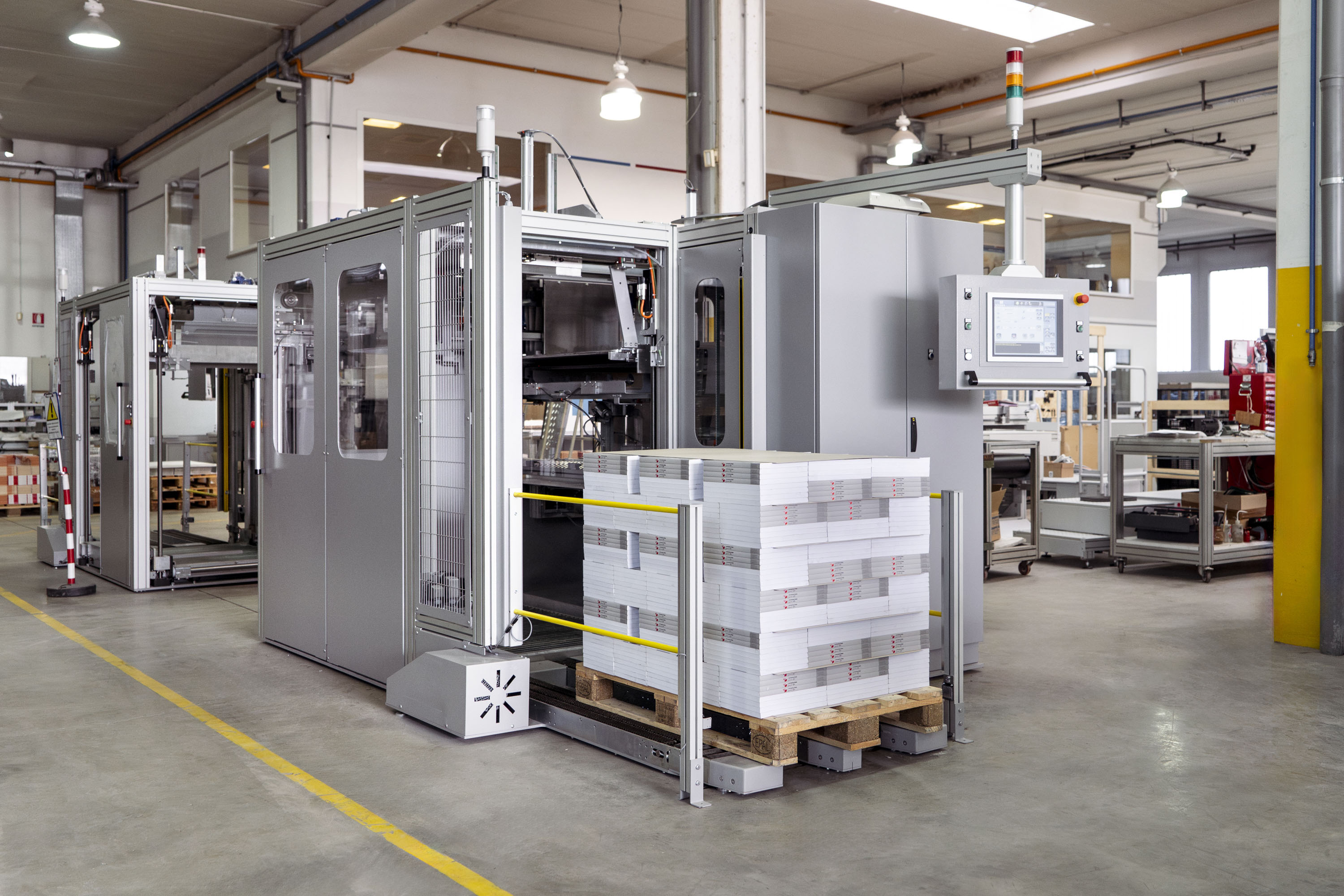

Compact, flexible and user friendly, the MINI PLUTON is the ideal palletizer for end of line automation, the machines small foot print makes installation possible even in the most confined areas. The MINI PLUTON design enables it to run every type of product including loose, strapped, shrink wrapped or boxed products.
Product enters the machine via the built in buffer / timing conveyor and turning station, here the product is spaced and turned to the correct orientation depending on the row / layer formation required.
Request InformationTechnical Data
| Machine speed | max. 15 products/minute |
| Product dimensions (L x W x H) | min. 100 × 70 × 60 mm (4 × 2 3⁄4 × 2 3⁄8”) max. 500 × 350 × 300 mm
|
| Pallet dimensions (L x W x H) | min. 800 × 800 × 120 mm (31 1⁄2 × 31 1⁄2 × 4 3⁄4”) max. 1270 × 1060 × 170 mm (50 × 41 3⁄4 × 6 11⁄16”) |
| Pallets storage capacity | 1 pallet (+1 on working + 1 in exit) |
| Size-change | automatic through servo-motors |
