Automatic stacker

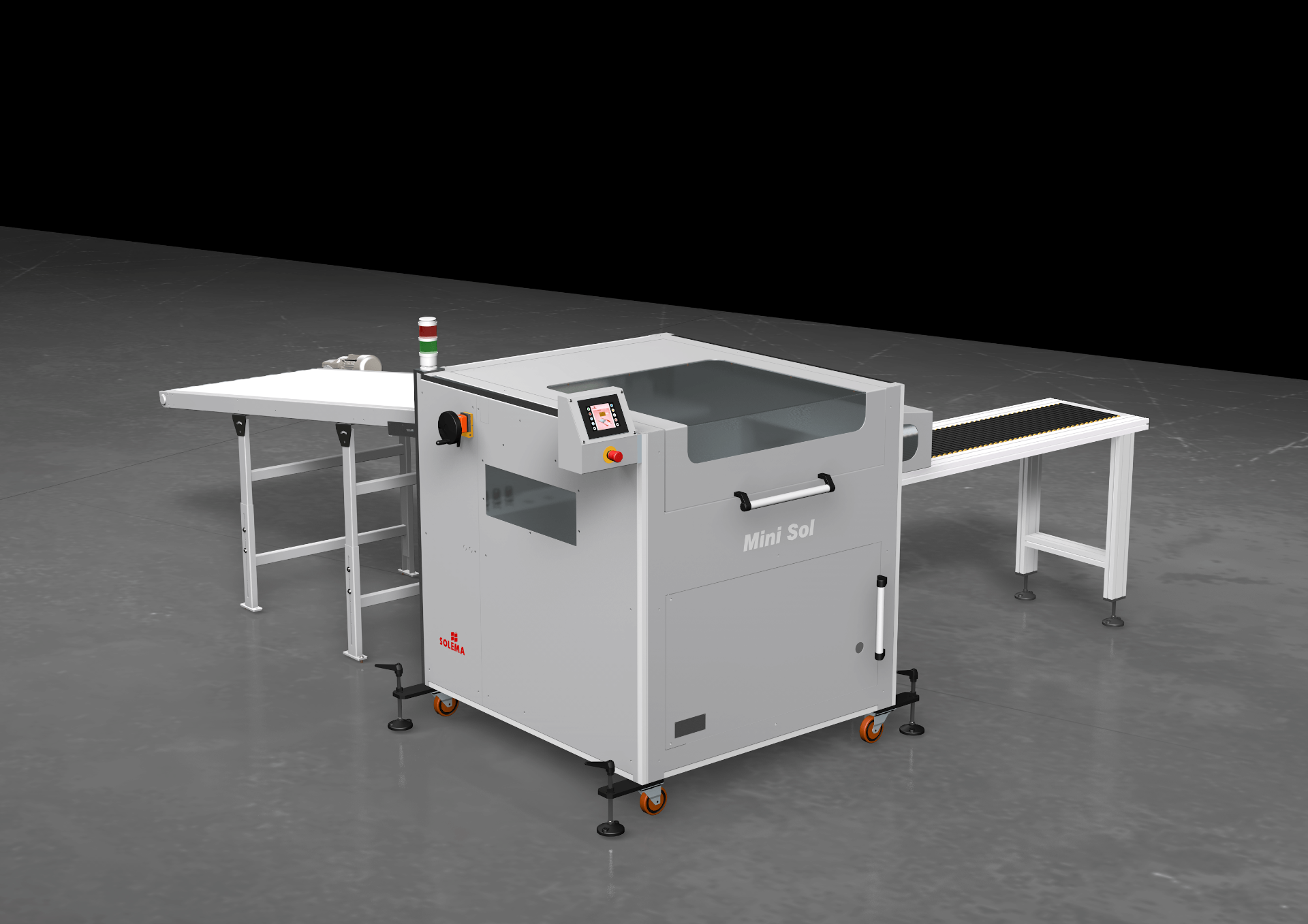

MINI SOL is a compact and cheap stacker that thanks to its ductility can be exploited for many different uses. It can be installed as emergency stacker in case of stop of the downstream machine, to pre-stack before a three knife trimmer or at the end of an automation line. Very useful in case of semi-finished products where it's not necessary to compensate the spines. This machine is designed through an accurate chosing of the finest materials, to allow to stack both soft cover and hard cover products.

Request Information

Would you like more information?

Name Contact ^*

Email ^*

Name Company ^*

Telephone

Message ^*

I authorize the processing of my personal data pursuant to the GDPR regulations * Privacy & Cookie policy I authorize the use of my personal data in order to be updated on new arrivals, exclusive products and for direct marketing purposes related to the services offered

Technical Data

Machine speed	max. 100 products/minute (vers. H150) max. 130 products/minute (vers. H250)
Product dimensions (L x W x H)	min. 110 × 80 × 3 mm (4 ³⁄₈ × 3 ¹⁄₈ × ¹⁄₈”) max. 510 × 420 × 75 mm (vers. H150) (20 ¹⁄₈ × 16 ¹⁄₂ × 3”) max. 510 × 420 × 80 mm (vers. H250) (20 ¹⁄₈ × 16 ¹⁄₂ × 3 ¹⁄₈”)
Pre-stacking station height	max. 50 mm (2”)
Pile height	max. 150 mm (5 ⁷⁄₈”) (vers. H150) max. 250 mm (9 ⁷⁄₈”) (vers. H250)
