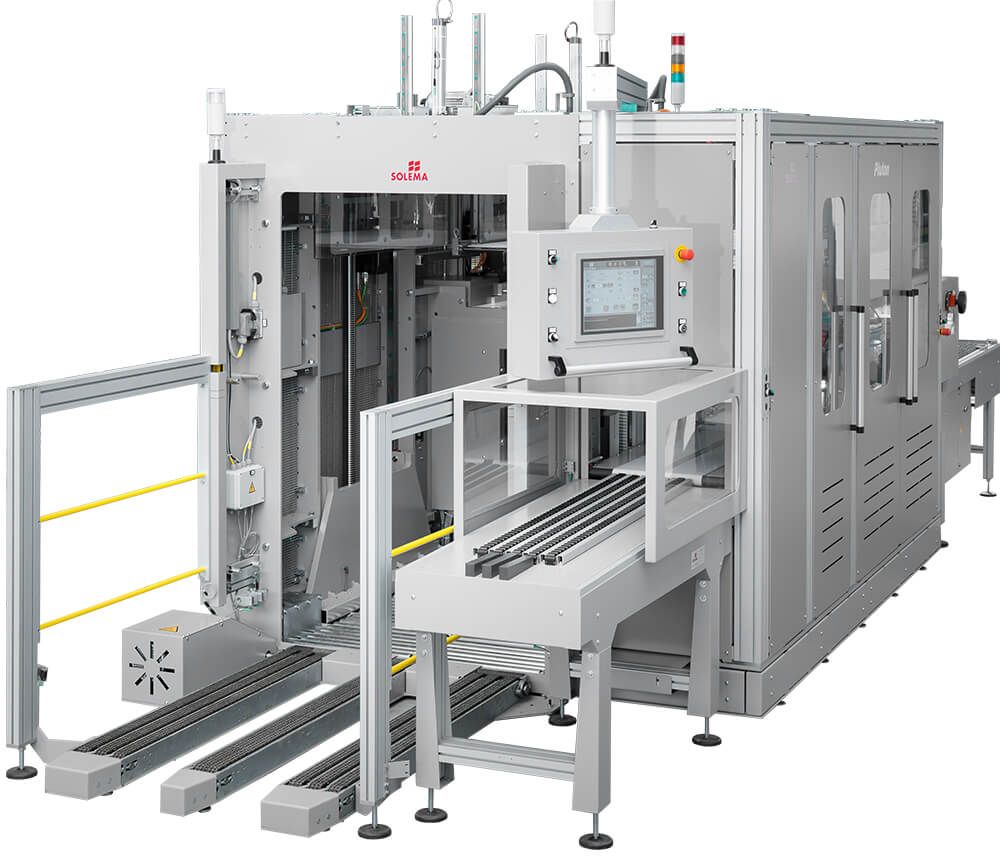

PLUTON

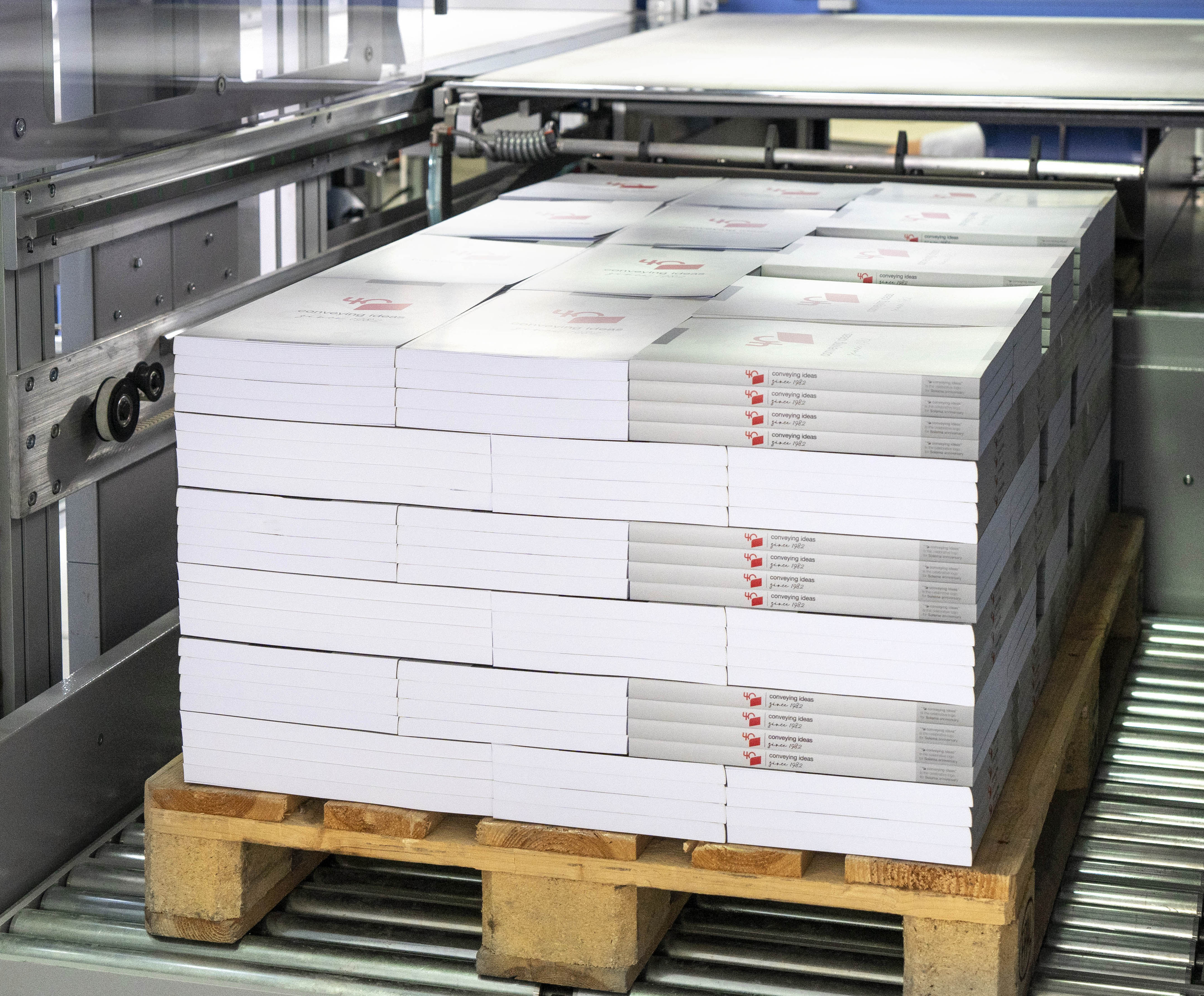

PLUTON can be used to palletize: Hard and Soft cover books, sewn and glued bookblocks, magazines, catalogues and phone directories, shrink wrapped piles or bundles, carton boxes, strapped / blocked signatures, newspapers.

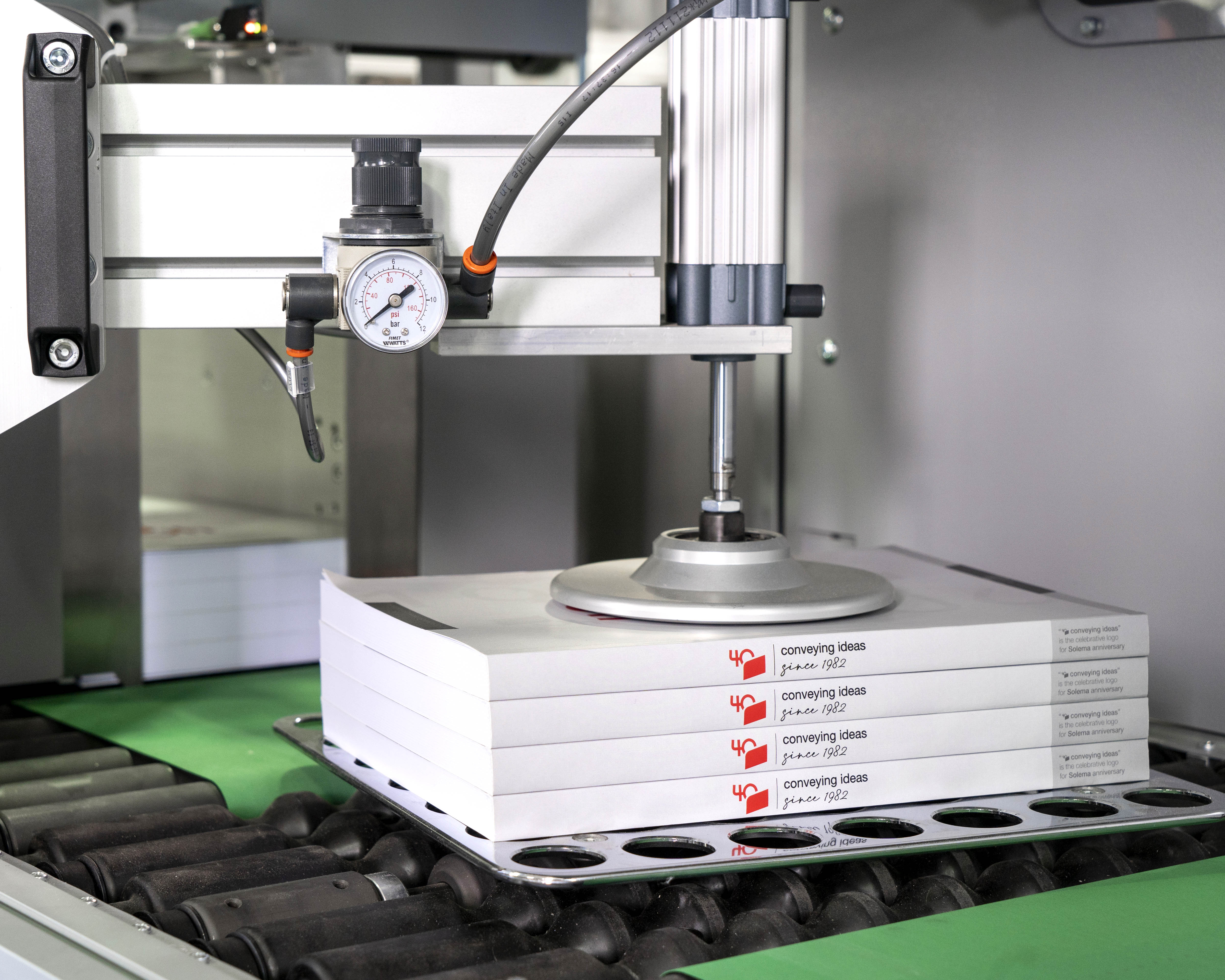

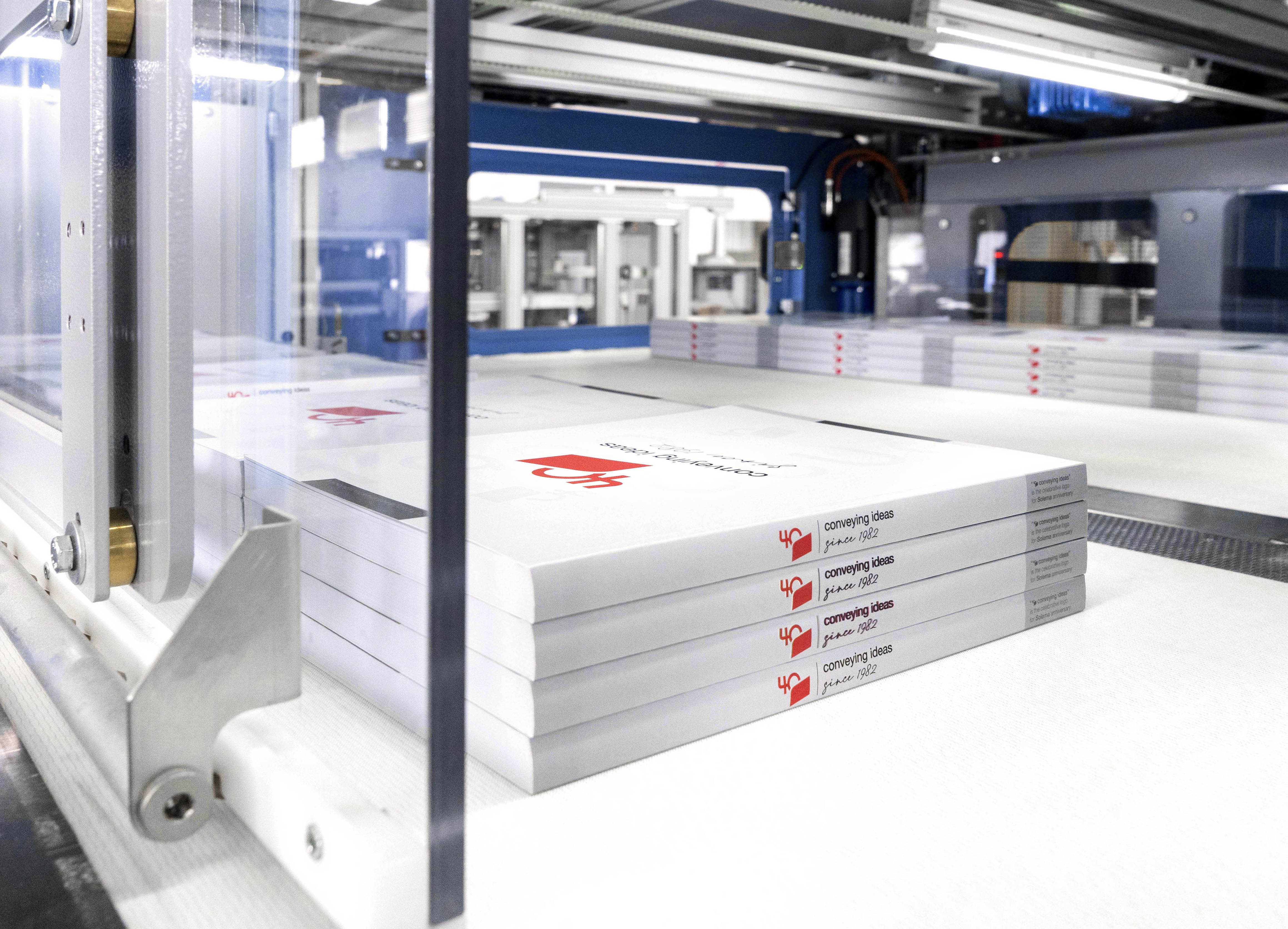

Main characteristics of this machine are: the small footprint which allows its application even in very narrow places, the continuous jogging of the product during the different transition inside the machine, and simplicity of movements through linear transport. The palletizer is constructed on a main structure which, due to the compact dimensions, enables its transport as one piece.

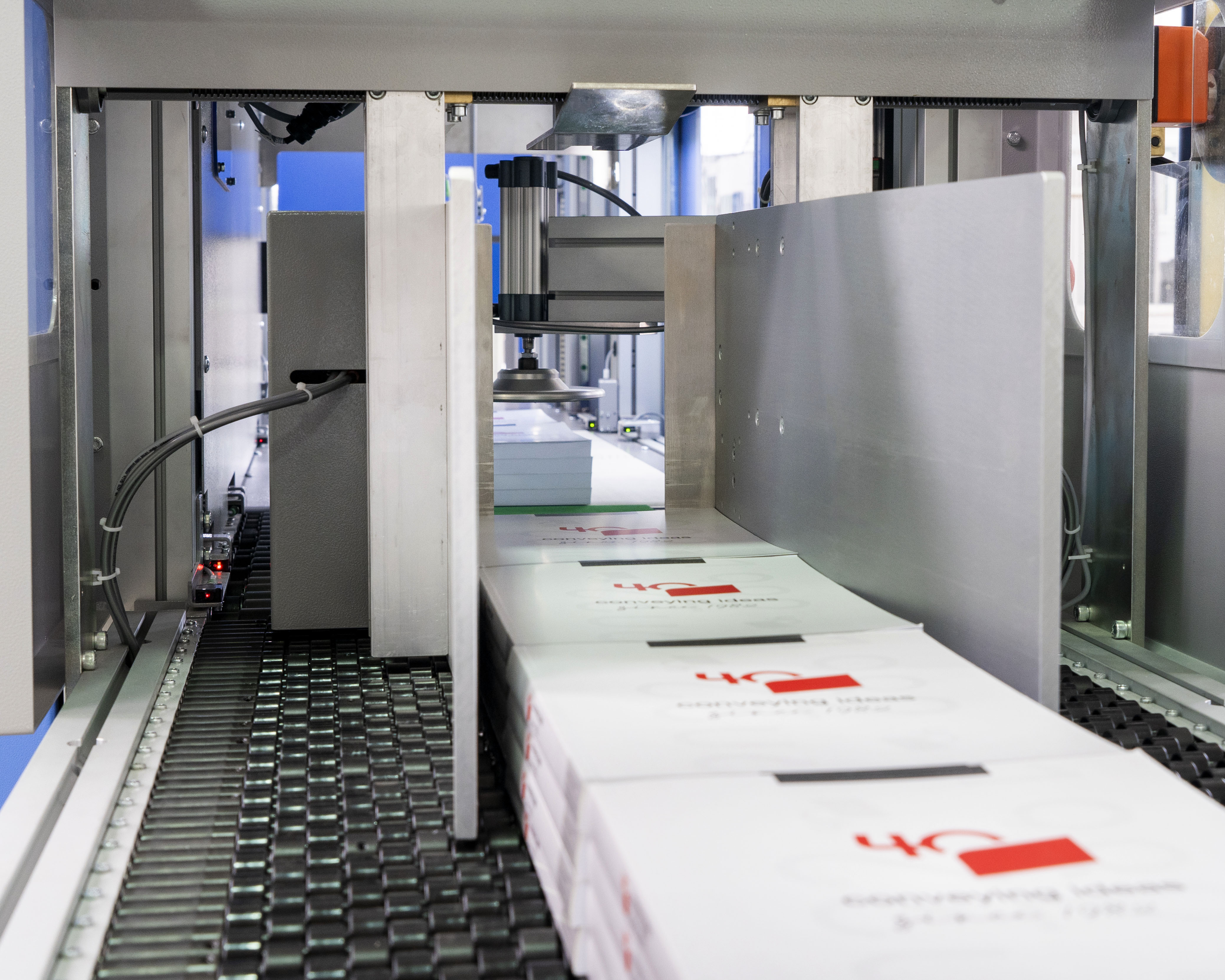

The PLUTON is endowed with a timing station at the entrance, an accumulating conveyor, automatic storage for empty pallets and an automatic device for feeding of the slip-sheets.
Request InformationTechnical Data
| Machine speed | max. 25 products/minute |
| Product dimensions (L x W x H) | min. 150 × 110 × 60 mm (5 7⁄8 × 4 5⁄16 × 2 3⁄8”) max. 500 × 320 × 300 mm (19 3⁄4 × 12 5⁄8 × 11 13⁄16”) |
| Pallet dimensions (L x W x H) | min. 800 × 700 × 130 mm (31 1⁄2 × 27 1⁄2 × 5 1⁄8”) min. 640 × 700 × 130 mm with opt. kit (25 1⁄4 × 27 1⁄2 × 5 1⁄8”) max. 1270 × 1060 × 170 mm (50 5⁄8 × 41 3⁄4 × 6 11⁄16”) |
| Pallets storage capacity | 900 mm (35 1⁄2”) meaning 5 — 7 pallets |
| Size-change | automatic through servo-motors |
