ANDAX-WIDE

automatic corrugated board partition assembler

Automatic partition assembler


ANDAX-WIDE is a very robust and versatile machine designed for the automatic assembly of corrugated board partitions.

It can handle all types of corrugated board, from E-flute to double wall including microwave and twin dual, with maximum consistency and productivity.

Production rates up to max. 35 partition sets/minute (depending on product’s sizes).

Machine is delivered in standard configuration with six longitudinal channels and the possibility of inserting up to twenty-four cross elements.

For an optimized running speed and productivity the machine can be optionally supplied with:

  • Longitudinal channels: upon request additional channels can be added to the existing ones
  • Collapser: automatic folding, counting and batching of assembled partition on a delivery table


Request Information

Technical Data

ProductsA — B — C — E — BC flutes, min. 1.6 mm (1⁄16”)
Machine speedmax. 35 partitions/minute
Longitudinal elements lenghtmax. 1200 mm (47 1⁄4”)
Trasversal elements lenghtmax. 850 mm (33 4⁄8”)
Partition's heightmin. 70 mm (2 3⁄4”) — max. 400 mm (15 3⁄4”)
Optional devices availablecollapser folder

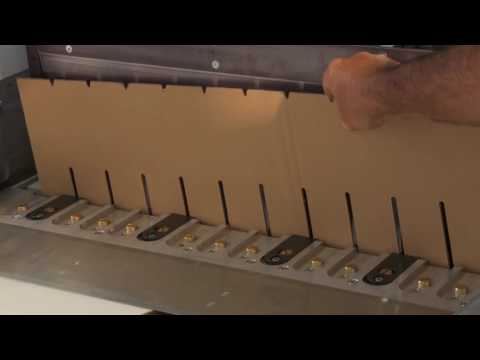

Video Gallery

FAQ

An automatic partition assembler is a machine designed to build corrugated partitions through a controlled and continuous process. Within an automatic partition system, individual components are fed, aligned, and assembled into complete structures. This allows consistent results without relying on manual operations, improving the overall flow of production.
Choosing an automatic partition assembler depends mainly on specific production needs. It is also important to consider the type of partitions, required output, and level of flexibility needed for different configurations. A reliable automatic partition system should handle varying formats while maintaining consistent performance. Space and integration are also key factors, as the machine must fit smoothly into the existing workflow. Rather than focusing only on specifications, the best choice is a solution that supports real production conditions, ensuring efficiency, continuity, and adaptability over time.
The best automatic partition assembler machines for industrial use are those that combine high output, flexibility, and consistent performance over long production runs. An efficient automatic partition system should be able to handle different corrugated board types, from microflute to double wall, while maintaining stable assembly quality. High-speed capability is essential, with some systems reaching up to 50 partitions per minute, making them suitable for demanding industries like packaging, automotive, and beverages. The most effective solutions are also designed to adapt to multiple configurations, allowing manufacturers to manage different partition formats without interrupting production.
Automating partition insertion with an automatic partition assembler allows companies to streamline production and reduce manual handling. Within an automatic partition process, multiple steps are combined into a single continuous operation, improving efficiency and reducing material waste. This approach also leads to better consistency in the final product, which is essential for protecting goods during transport. In addition, automation helps lower labor costs and optimize space by eliminating intermediate handling stages, making the entire packaging workflow more efficient and scalable.
