SUPER-COMBI

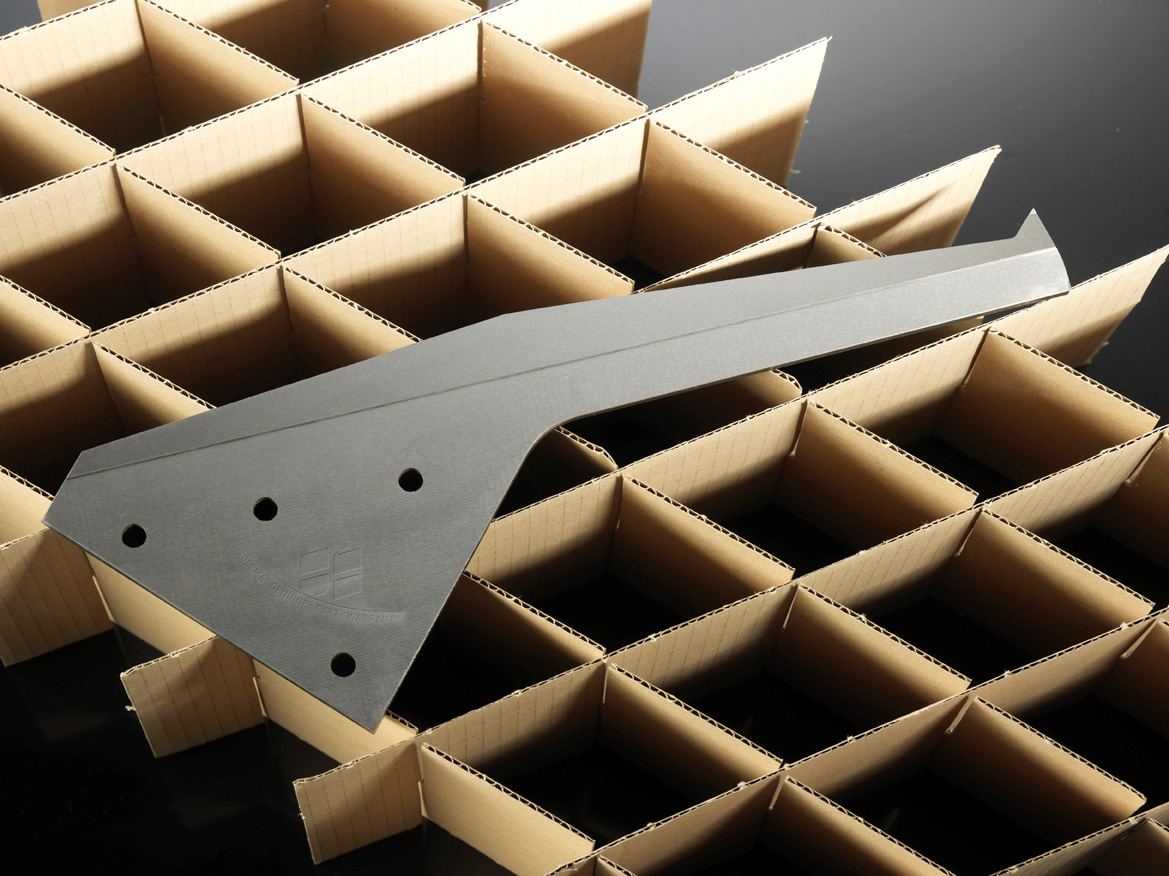

Designed for accurate, high volume production of corrugated partitions, pads, fitments, blanks and packing reinforcements for carton and boxes in corrugated board.

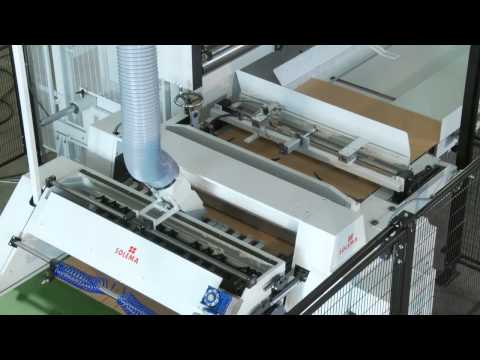

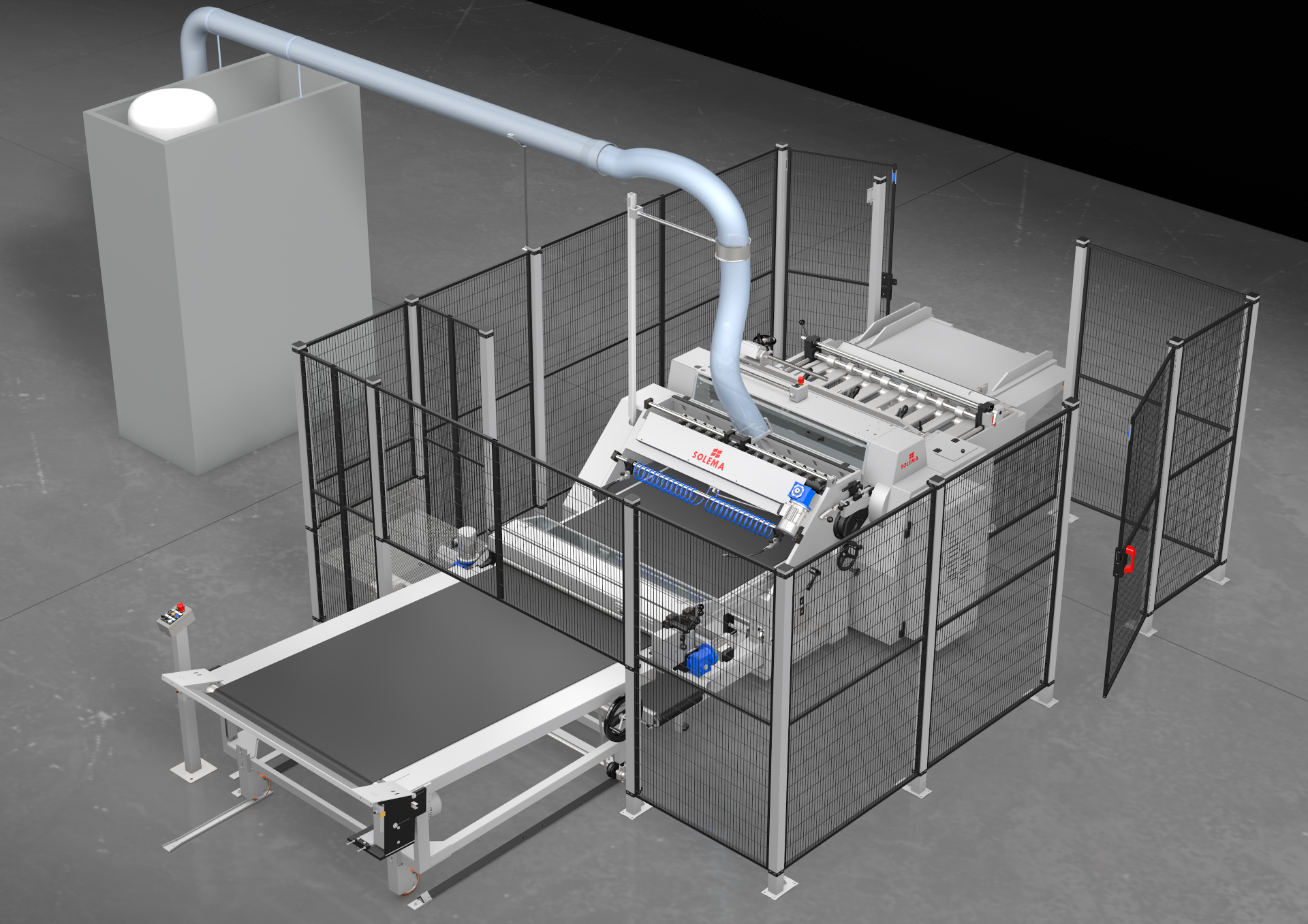

SOLEMA SUPER-COMBI is a multi-purpose machine integrating roda technology, with the unique ability to perform seven different operations in a single pass: board feeding, creasing, scoring, slitting, crosscutting, partition slotting, shingling on delivery table of finished pieces.
In your corrugated converting department, super-combi is the ideal solution for quick and easy production of all types of pads and square shaped packing items.
The machine grants an efficient and precise cutting of Corrugated board, solid fiber, padded board / press-pan, acetate, foam, rubber, plastic materials etc.
Request InformationTechnical Data
| Machine speed | slotting disengaged: 16 — 20 m/minute (52 — 65 ft/minute) slotting engaged: 50 — 100 strokes/minute |
| Partition high | min. 80 mm (3 5/32") - max. 400 mm (15 3/4") |
| Board thickness | corrugated board: max. 10 mm (3/8") |
Board width | max. 1300 mm (51 3/16") |
| External devices available | cb-feed (automatic feeder from pile) |
