How to increase productivity by up to 30%? Discover OMEGA693-12

Omega693-12 is Solema’s palletizing cobot: a flexible, safe, and smart solution that optimizes the end-of-line and seamlessly integrates into any production process

---

Automation enters a new era with Omega693-12, Solema’s collaborative robot (Cobot) designed to optimize palletizing in the graphic arts, packaging, and folding carton sectors. This flexible, safe, and intelligent solution is engineered to work alongside the operator, enhancing end-of-line efficiency while integrating seamlessly into any production environment.

Omega693-12: Collaborative Robotics according to Solema

In the landscape of robotics applied to industrial automation, Solema introduces Omega693-12 , our Cobot (collaborative robot) designed to optimize end-of-line palletizing operations in the graphic arts , packaging, and folding carton industries.

Unlike traditional industrial robots, the Omega693-12 is designed to operate in total synergy with humans, automating processes without replacing the operator's expertise, but rather enhancing it and increasing overall performance.

Collaborative robotics represents a fundamental step toward smarter, more sustainable, and human-oriented automation. With Omega693-12, Solema confirms its strategic vision: integrating innovation, flexibility, and safety into production processes, offering solutions capable of evolving alongside a market where the ability to adapt to change is the primary competitive factor.

What is Omega693-12 and how it works

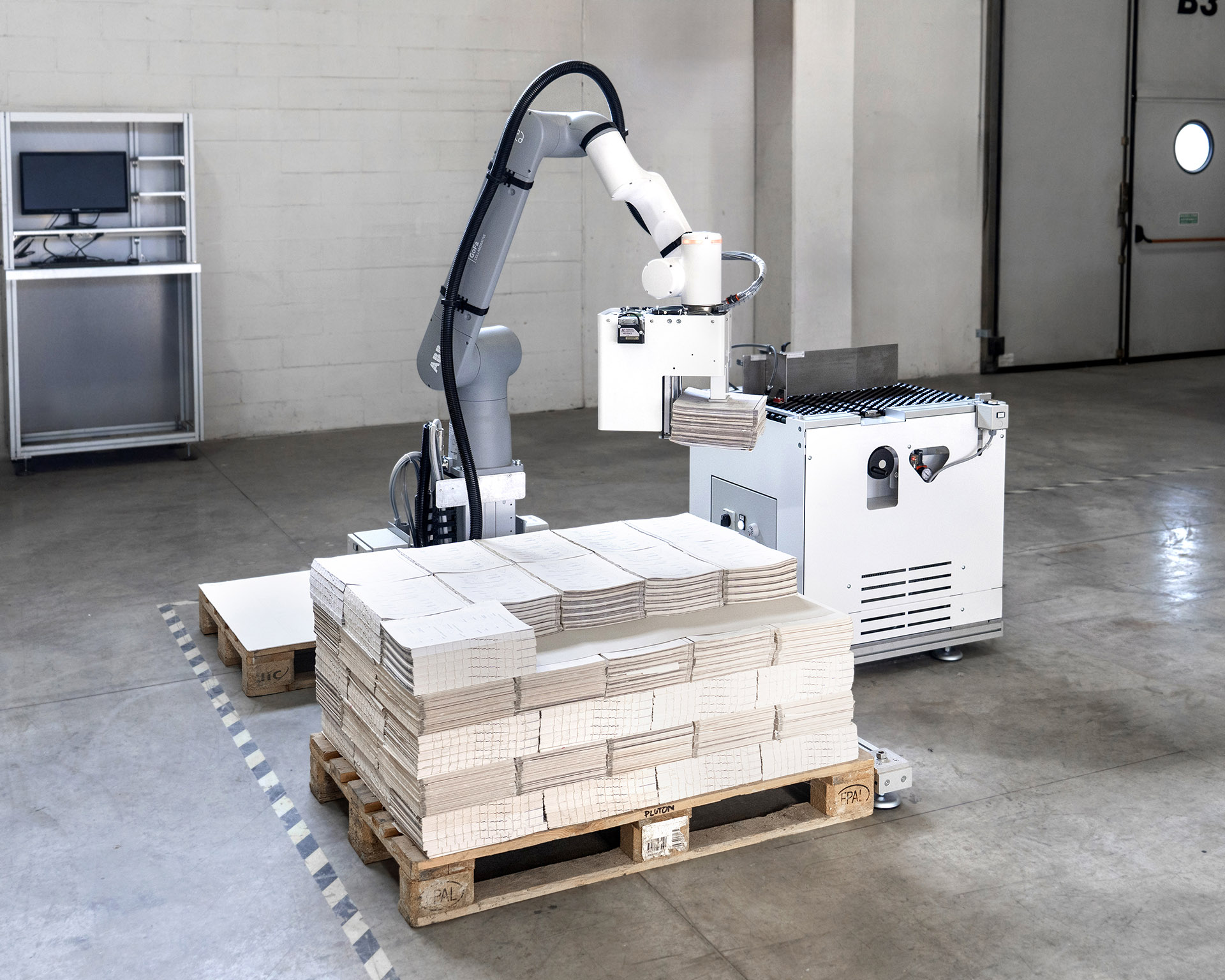

Omega693-12 is an advanced collaborative robotic palletizing solution consisting of:

• An anthropomorphic arm (6-axis).
• A dedicated picking station.

The system is operated via an intuitive interface (FlexPendant with HMI), allowing for centralized management of production data and recipes. Designed to ensure precision, continuity, and flexibility, Omega693-12 automates the end-of-line process, efficiently arranging products on pallets at a maximum speed of 5 cycles per minute.



Technical Specifications

Product Dimensions (L x W x H)	Min: 150 x150 x 60 mm - Max: 400 x 250 x 120 mm
Weight	Max 6.5 kg
Pallet Dimensions	1200 x800 mm
Footprint	6m²

Omega 693-12 Applications: Versatile Palletizing Solution for Diverse Industries

Thanks to its versatility, Omega693-12 integrates perfectly into numerous production contexts:

• Digital lines (ideal environment)
• Sewing lines
• Saddle stitching lines
• Folding lines
• Packaging and folding carton sectors (boxes, partitions, dividers, cases)

It can also be used on conventional lines to alleviate the physical workload of operators taking over repetitive End-of-Line (EOL) tasks.

Maximum Operational Flexibility and Integration

One of the core strengths of Omega693-12 is its ability to evolving production needs through:

• Customized configuration of pallet patterns.
• Variable orientation of stacks, easily adjustable at the operator’s discretion.

·         Intuitive Reprogramming for quick Setup

Thanks to its wheeled base and compact, mobile structure (occupying only 6m²), Omega693-12 can be easily moved and quickly reconfigured between different production lines, representing the ideal solution for dynamic production environments.

The Highest Safety Standards

As a collaborative robot, Omega693-12 is designed to work in an open structure without bulky physical barriers, maintaining high safety standards. Operator safety is guaranteed by three laser scanners that constantly monitor the work area:

1. Detection: If a person enters the work zone, the cobot automatically slows down.
2. Protection: In case of extreme proximity, the arm stops instantaneously to prevent impact.
3. Restart: Once the area is clear, the cycle resumes at maximum speed without manual intervention.

This approach enhances not only operational efficiency but also the safety and well-being of personnel by significantly reducing the risk of workplace injuries

The Universal Gripper: A Unique Value Proposition

A distinctive feature of Omega693-12 is the special universal gripper - entirely designed and developed by Solema. It is engineered to handle a wide range of products without requiring tool changes, effectively eliminating downtime between different production runs.

Thanks to a design born from research and Solema's extensive industry experience, the gripper can handle the following with extreme delicacy and precision:

• Books (saddle-stitched and perfect bound products, soft and hard cover books and bible/lightweight paper books).
• Book blocks (sewn, glued, digital with glue dots).
• Boxes of different sizes.
• Cardboard pads and partitions.

The pick-up always occurs from the bottom: this ensures the product is never "pinched" laterally or crushed. Instead, it is supported, avoiding scratches, marks, or deformations even on the most delicate materials.

Result: Maximum efficiency and operational continuity even when switching between different jobs.

Proprietary Software: Total Control and Customization

The technological heart of Omega693-12 is its proprietary software, developed entirely by Solema, which represents a truly exclusive and distinctive feature. Unlike standard market solutions, this dedicated software, featuring an intuitive and user-friendly HMI allows the operator to:

• Create customized palletizing layouts.
• Manage an unlimited numbers of recipes.
• Receive automatic suggestions for the optimal pattern.
• Save and immediately recall set configurations.

Intelligent Format Management with Industry 4.0 Vision Systems

Furthermore, Omega693-12 is fully compliant with Industry 4.0 interconnection standards: the Cobot communicates directly with the production line to identify incoming product formats in real-time. Equipped with an integrated camera-based vision system, Omega693-12 can even perform automatic sorting, simultaneously distributing different formats (e.g., A4 and A5) onto two separate pallets.

Rapid Installation and Continuous Support

Omega693-12 also stands out for its ease of implementation:

• Installation in just one day.
• Operator training in 1–2 days.
• Remote assistance via Site Manager.

A dedicated customer care service ensures operational continuity and constant support.

Success Confirmed by Numbers: +25% Productivity

Among our most recent installations, the project carried out at RotolitoS.p.A. stands out. The introduction of Omega693-12 led to a +25% increase in productivity, serving as a perfect example of corporate Sales Success.

In 2025 alone, 10 Omega693-12 Cobots were successfully installed worldwide, confirming the growing global demand for collaborative robotic solutions.

Come and Discover Omega693-12 in Person

Omega693-12 is also available in the Omega693-20 version, with a load capacity of up to 15 kg.

Visit our Robotics Demo Center in Pedrengo to see both models in action. Our showroom is a dedicated hub designed to let you experience the seamless integration of robotics into industrial workflows.

Contact us to schedule an appointment.

For personalized consulting and to discover how to integrate Omega693-12 into your business processes, email info@solema.it or call +39 035 654111.
